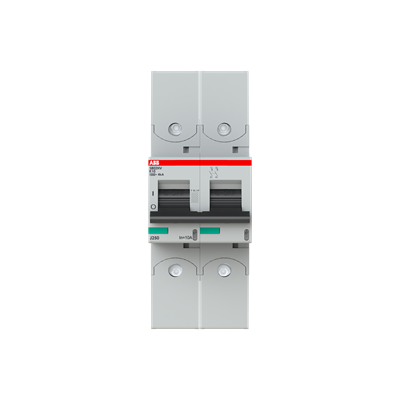

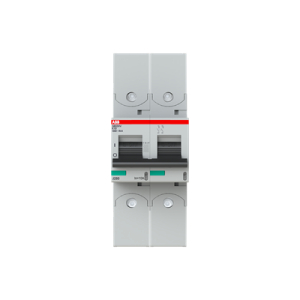

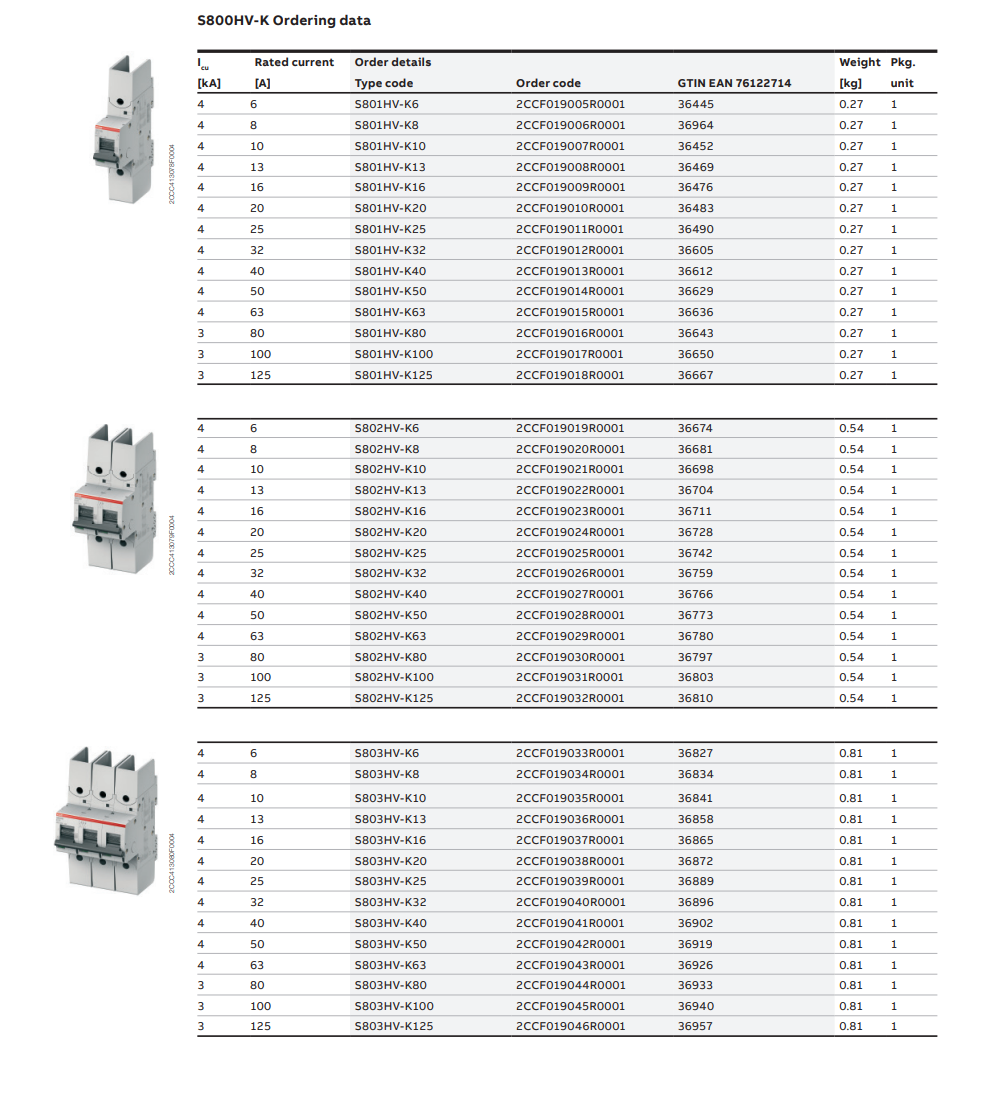

S803HV-K32 ABB塑料外壳式断路器 2CCF019040R0001

产品型号:

S803HV-K32

产品ID:

2CCF019040R0001

欧洲商品编号(EAN):

7612271436896

目录说明:

High Performance MCB

详细描述:

The S803HV-K32 is a 3-pole High Performance Circuit breaker with K-characteristic, with cage terminal, long separating plates and a rated current of 32 A. It is a current limiting device with a maximum breaking capacity of 4kA at 580/1000V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803HV-K32 complies with IEC/EN 60947-2 and allows the use for industrial applications. It can be used worldwide. The extensive range of accessory makes the use of S803HV-K32 more comfortable. Due to the fast arc extinction of S803HV-K32 your application will be secured

ABB EcoSolutions:

是

根据EN45555标准的产品可回收率（%）:

Design for Closing Resource Loops - Standard EN45555 -  86.29 %

在ABB工厂生产，该工厂已达到集团垃圾填埋目标（工厂名称）:

No non-hazardous waste is sent to a landfill

产品寿命终止后的拆解指南:

9AKK108470A2575

产品环境声明 - EPD:

EPD ABBG-00659-V01.01-EN_G - S800 MCB

EPD ABBG-00658-V01.01-EN_E - S800 MCB

技术参数

额定极限短路分断容量 (Icu):

(1000 V AC) 4 kA

额定服务短路分断容量 (Ics):

(1000 V AC) 2.5 kA

触头位置指示:

ON / OFF / TRIP

限能等级:

3

保护极数:

3

极数:

3P

拧紧力矩:

3.5 N·m

脱扣器类型:

K

驱动器标记:

I  / O

推荐的螺丝刀:

Pozidriv 2

Accessories Available:

是

评论:

Connection from top and bottom

Connecting with CU only

IP40 in enclosure with cover

Cage terminal with captive screw

连接容量:

Flexible 0 … 50 mm²

Rigid 0 … 70 mm²

端子类型:

Screw Terminals

Electrical

脱扣特性:

K

额定工作电压:

acc. to IEC 60947-2 1000 V AC

额定绝缘电压 (Ui):

acc. to IEC/EN 60664-1 1000 V

额定冲击耐受电压 (Uimp):

8 kV

输入电压类型:

AC

额定电流 (In):

32 A

频率 (f):

60...60 Hz

额定频率 (f):

50/60 Hz

功率损耗:

9.6 W

at Rated Operating Conditions per Pole 3.2 W

过电压类别:

III

Design

壳体材料:

Insulation group I, RAL 7035

UL/CSA适用的技术参数

中断额定值符合UL1077标准:

(600 V AC) 15 kA

Material Compliance

RoHS信息:

RoHS_confirmation_22072019

EU Declaration of Conformity - S800 S-UC, HV, PV-SP

RoHS状态:

Following EU Directive 2011/65/EU

RoHS日期:

20170426

REACH Declaration:

REACH Declaration for S800 and its accessories

REACH Information:

False - does not contain substances > 0.1 mass percentage

REACH Date:

20200527

Conflict Minerals Reporting Template (CMRT):

Conflict Minerals Reporting Template

WEEE 类别:

5. Small Equipment (No External Dimension More Than 50 cm)

WEEE B2C / B2B:

Business To Business

环境条件

周围环境温度:

Operation -25 ... +60 °C

Storage -40 ... +70 °C

防护等级:

IP20

污染等级:

2

耐振动符合IEC 60068-2-6标准:

1 mm 2 - 13.2 Hz

0.7g with Load 100% x Ie 13.2  - 100 Hz

抗机械冲击符合IEC 60068-2-27标准:

5 g

30 ms

环境信息:

Environmental information S800 and accessories

尺寸

宽度(模块化垫片数):

4.5

产品净宽:

81 mm

产品净高:

142 mm

产品净深:

82.5 mm

产品净重:

720 g

内深 (t2):

82.5 mm

订货信息

1级包装单元:

box 1 piece

1级包装 总重:

850 g

E-Number (Sweden):

2100061

认证及声明（文件编码）

符合性声明 - CE:

EU Declaration of Conformity - S800 S-UC, HV, PV-SP

Installation

说明书和手册:

Instruction Manual S800 range

安装到DIN导轨上:

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

安装位置:

Any

Popular Downloads

数据手册，技术资料:

Global Product Catalogue 2024 - MCBs

Global Product Catalogue 2024 - Accessories for MCBs and RCDs

Global Technical Details 2024 - MCBs

外部分类和标准

ETIM 9:

EC000042 - Miniature circuit breaker (MCB)

UNSPSC:

39121603

e级:

V11.0 : 27141901

IDEA 粒度分类代码 (IGCC):

4899 >> Miniature circuit breaker (MCB) screw-in model

对象分类代码:

F

标准:

IEC/EN 60947-2

UL 1077
